BUS Headlamp: Full LED Type VS Halogen Type | Advantages And Disadvantages Comparison

Full LED Headlights

Advantages

1. High brightness and long lighting range. White light illuminates unlit rural roads better at night. It delivers longer high-beam distance and sharper road details.

2. Instant full illumination. LED headlights reach maximum brightness right after power-on. Unlike halogen lamps that need warm-up, LEDs respond faster for overtaking and warning flashes.

3. Extra-long service life. Standard lifespan ranges from 30,000 to 50,000 hours, which means minimal light source replacement for bus operators.

4. Lower power consumption. LED bus headlights save energy compared with halogen versions. They reduce generator load and cut down fuel consumption for buses.

5. Clear beam cutoff line. Lens-equipped LED headlights form a neat low-beam boundary. Qualified LED bus lamps reduce glare to oncoming vehicles.

Disadvantages

1. Poor penetration in heavy rain and fog. Cold white light scatters easily through water droplets in fog or rain, creating whiteout effect and lowering road visibility.

2. Strict heat dissipation requirement. Insufficient heat dissipation causes rapid lumen depreciation and burnt driver boards.

3. High maintenance cost. Most modern LED bus headlamps are integrated assemblies. If the LED chip or driver fails, you usually have to replace the whole headlight unit instead of a single bulb. Spare parts stock for LED assemblies is limited in repair workshops.

4. Condensation risk under large temperature difference. In cold environments, lamp housing condensation happens more easily, requiring premium sealing quality for LED bus headlights.

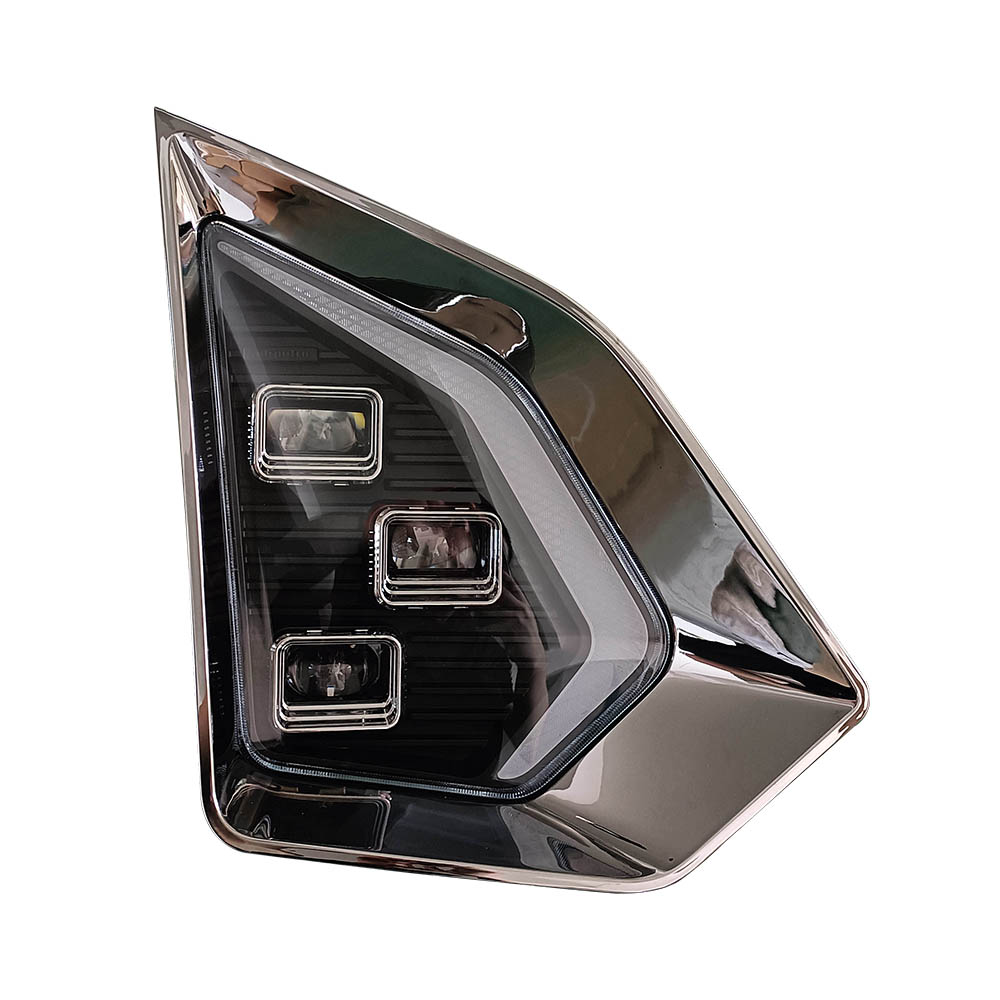

   HC-B-1783 Full LED Headlights (LED Bus Headlamp)



Halogen Headlights (Standard for Traditional Buses)

Advantages

1. Warm light with strong fog & rain penetration, improving driving safety under rainy and foggy road conditions.

2. Simple and low-cost maintenance. Halogen bulbs are replaceable individually. Failed bulbs can be swapped separately. Spare halogen bulbs are widely available, and mechanics can finish replacement quickly.

3. Simple, reliable structure with basic driving circuit. Great vibration resistance and low failure rate. Minor condensation inside the lamp rarely damages halogen light sources directly.

4. Low procurement cost, helping reduce the total purchase price of new buses.

5. Soft diffused light. Glare is relatively easier to manage under identical road conditions.

Disadvantages

1. Low brightness and short lighting range, leading to insufficient road lighting on unlit roads at night.

2. High heat output. Excessive heat makes lamp housing age and turn yellow quickly. Continuous high temperature also accelerates aging of lamp holders and wiring harness.

3. Short service life: only 500–1000 hours. For buses running frequent night shifts, bulb replacement will be needed multiple times per year.

4. Higher power draw, putting heavier load on the bus generator.

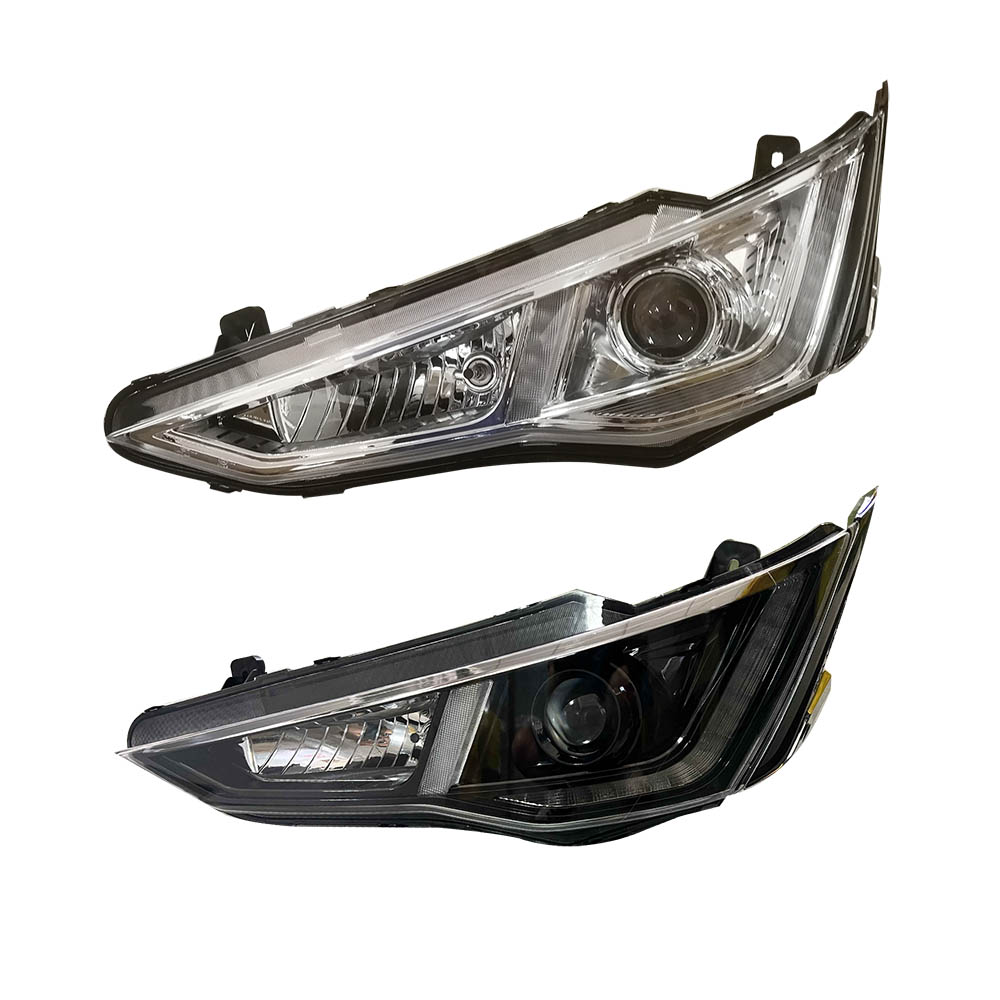

HC-B-1747-1 Halogen Headlights (Traditional Bus Halogen Headlamp)
